M5Stack has released the M5Paper Color ESP32S3 Dev Kit, a compact ESP32-S3 development board built around a 4-inch full-colour E Ink Spectra 6 display. Unlike a normal TFT or OLED display, this screen is designed for low-power visual applications where the image does not need to change constantly.
That makes it interesting for ESP32 dashboards, smart home panels, information displays, small signage, environmental monitors and battery-powered status screens.

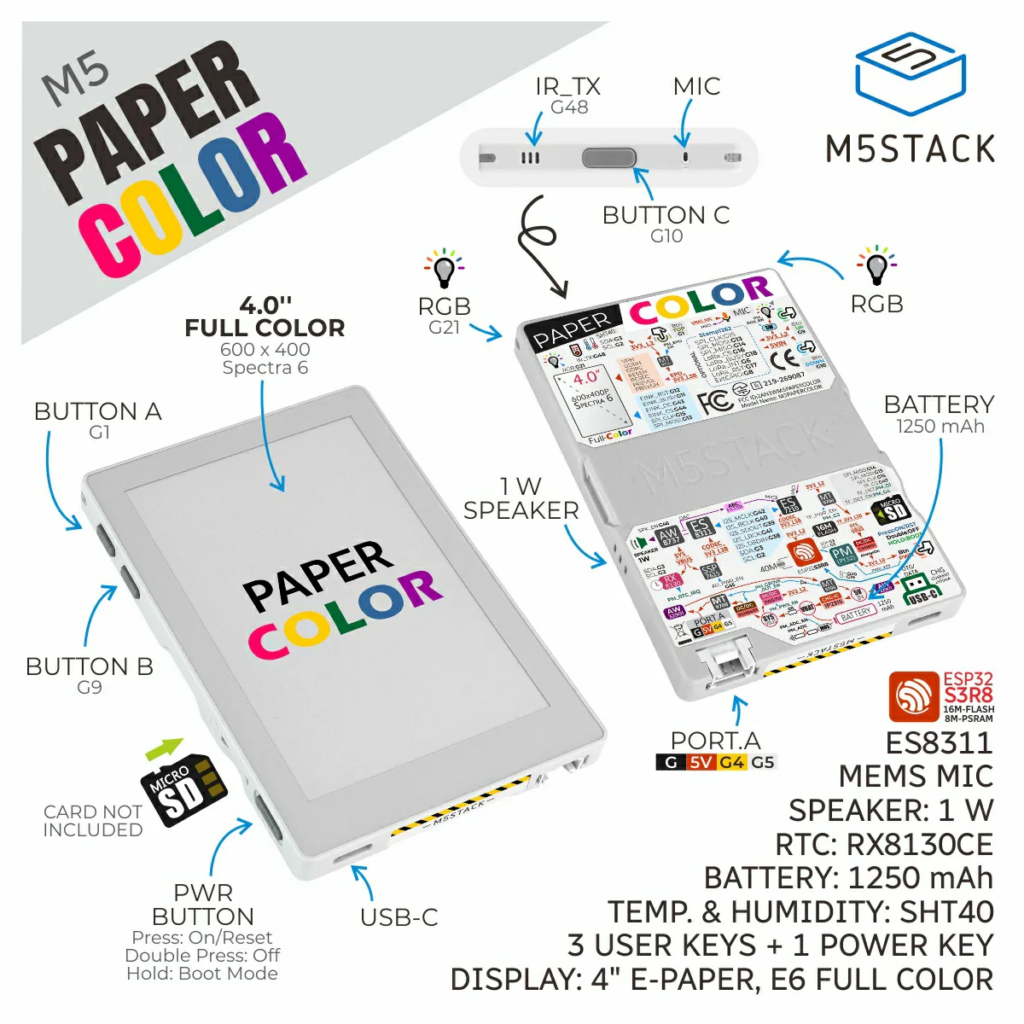

The device uses an ESP32-S3R8, with 16MB flash, 8MB PSRAM, 2.4GHz Wi-Fi, a 400 × 600 e-paper display, a 1250mAh battery, microSD storage, audio hardware, buttons, RTC, IR, RGB LEDs and an onboard SHT40 temperature/humidity sensor. M5Stack lists the board at $75 with stock available at the time of writing.
What Is M5Paper Color?
M5Paper Color is basically a self-contained ESP32-S3 display computer. It is not just a bare e-paper panel. M5Stack has packaged the display, ESP32-S3 module, power management, battery, buttons, speaker, microphone, sensor, RTC and expansion connector into one ready-to-use dev kit.
The main attraction is the 4-inch E Ink Spectra 6 full-colour display. The screen resolution is 400 × 600, which gives enough space for clear text, icons, graphs and dashboard layouts without needing a large enclosure.
This is the type of board that makes sense when you want something that looks more like a printed information card than a glowing screen.
Key Specifications
| Feature | M5Paper Color |
|---|---|
| SoC | ESP32-S3R8 |
| CPU | Dual-core Xtensa LX7, up to 240MHz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless | 2.4GHz Wi-Fi |
| Display | 4-inch E Ink Spectra 6 full-colour e-paper |
| Resolution | 400 × 600 |
| Battery | 1250mAh |
| Storage | microSD card slot |
| Sensor | SHT40 temperature and humidity |
| RTC | RX8130CE |
| Audio | ES8311 codec, ES7210 audio ADC, MEMS microphone, 1W speaker |
| Buttons | 3 user buttons + power button |
| Extras | IR emitter, 2 RGB LEDs, HY2.0-4P expansion port |
| Power | USB-C 5V |
| Standby consumption | 92.53µA |
| Full-load consumption | 211.97mA |
| Size | 70.8 × 103.9 × 8.5mm |
| Weight | 73.3g |

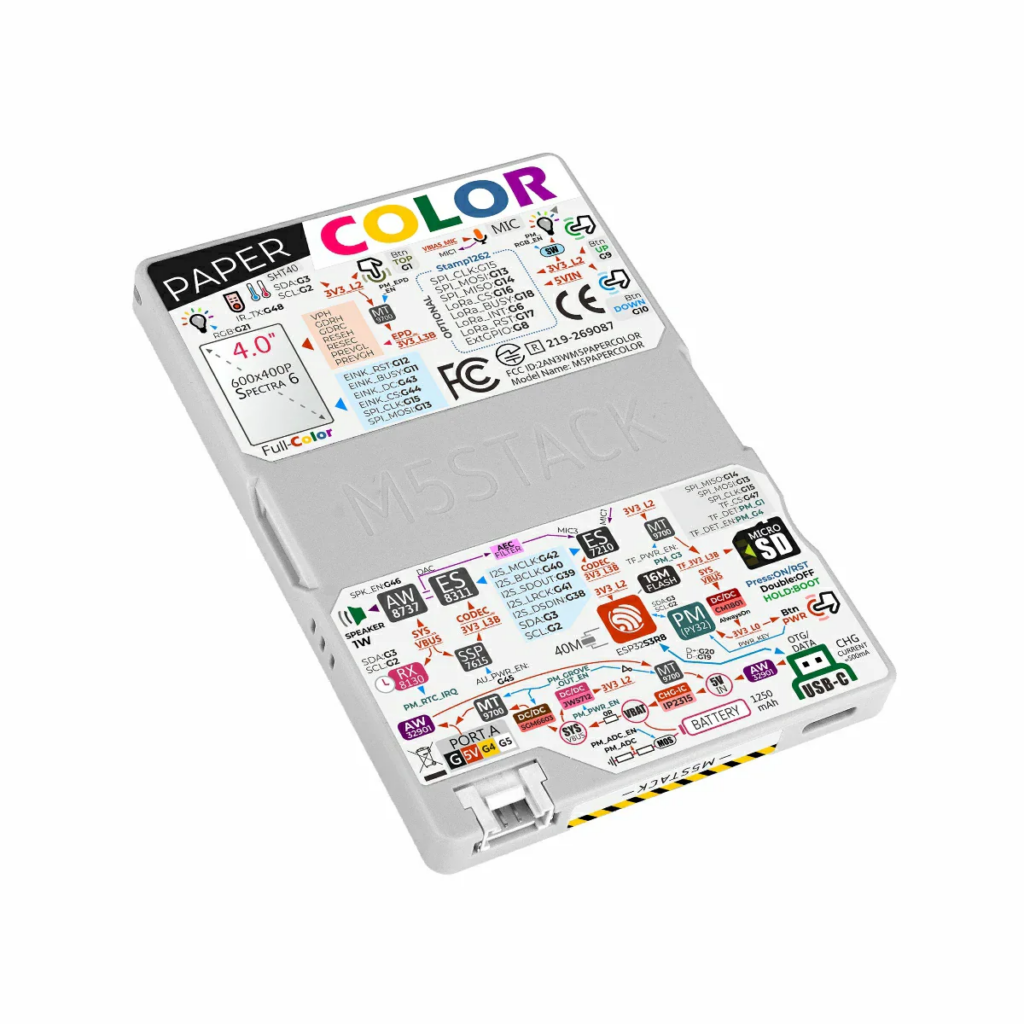

The official documentation also includes the GPIO mapping, Arduino support, PlatformIO example configuration, M5Unified, M5GFX and M5PM1 library references.
Why Colour E-Paper Matters
Most ESP32 display projects use TFT, OLED or monochrome e-paper. TFT and OLED are bright and fast, but they consume power continuously while displaying content. Monochrome e-paper is excellent for battery life, but it limits the interface to black and white.
M5Paper Color sits somewhere in the middle. It gives you a paper-like display with colour, while still keeping the low-power advantages of e-paper.
This is useful for:
- Home Assistant status dashboards
- Weather panels
- Energy monitoring screens
- Smart calendar displays
- Room information signs
- QR code displays
- Small menu boards
- Sensor readout panels
- Art/photo display projects
- Portable data terminals
For ESP32 projects, the benefit is obvious: you get a display that can show useful information without behaving like a small tablet screen that needs constant power.
Not a Fast Display — And That Is Fine
The important thing to understand is that colour e-paper is not fast. This is not the right display for animations, live gauges, video, scrolling menus or anything that needs instant refresh.

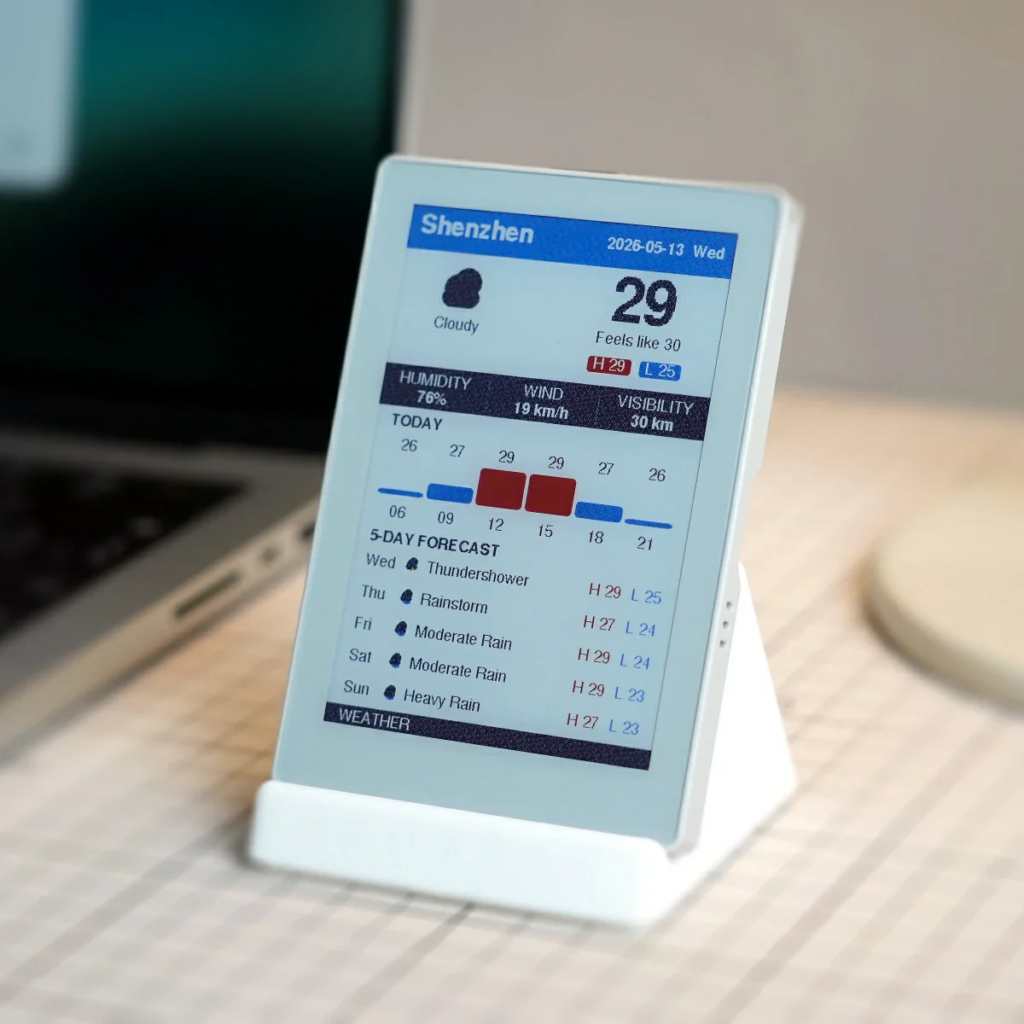

It is best used for information that changes occasionally: temperature, humidity, air quality, time, weather, calendar events, Wi-Fi status, battery level, energy usage or Home Assistant entity states.
So the honest way to describe this board is:
Excellent for static dashboards. Bad for fast interfaces.
That is not a weakness if you use it correctly. It is simply how colour e-paper works.
Built-In Hardware
M5Stack has included quite a lot of hardware around the ESP32-S3.
The SHT40 sensor means the board can work as a small environmental monitor without adding external modules. The RTC helps with timekeeping, especially for low-power applications. The microSD slot is useful for images, icons, fonts, logs or offline data storage.
The board also includes a MEMS microphone with AEC, an ES8311 audio codec, an ES7210 audio ADC and a 1W speaker, which makes it more flexible than a simple display board. M5Stack positions it partly for voice-interaction terminals as well as signage and display projects.
The HY2.0-4P expansion port also keeps it compatible with the wider M5Stack Grove-style ecosystem, so adding extra sensors or modules should be easier than wiring everything manually.
M5Paper Color and Home Assistant
This board could be very useful for Home Assistant users, especially for people who want a low-power status panel without installing a normal wall tablet.
Possible Home Assistant uses include:
- Room temperature and humidity display
- Solar production and battery status
- Electricity price display
- Weather forecast screen
- Alarm state display
- Door/window status display
- Calendar and reminders panel
- Air quality display
- Water tank or garden sensor dashboard
- Simple family message board
The display does not need to refresh every second. For many Home Assistant dashboards, updating every few minutes is enough. That suits e-paper much better than trying to use it like a normal LCD.
The practical route would probably be an Arduino or ESP-IDF project that pulls data from MQTT, Home Assistant REST API, or a local server and then refreshes the display only when needed.
Software Support
M5Stack’s documentation currently points users towards Arduino IDE, with support through M5Unified, M5GFX and M5PM1 libraries. It also provides a PlatformIO configuration using the Arduino framework and an ESP32-S3 board profile.
That means this board should be approachable for normal ESP32 developers, especially if they already use M5Stack hardware.
For beginners, the main challenge will probably not be the ESP32-S3 itself. The real challenge will be designing a good e-paper UI: using large readable text, limiting refreshes, avoiding unnecessary redraws and preparing graphics that look good on a colour e-paper screen.
Where This Board Makes Sense
M5Paper Color makes most sense when the display is the main feature of the project.
Good project ideas:
- A Home Assistant wall dashboard
- A battery-powered weather display
- A desk calendar
- A smart room sign
- A sensor data display
- A low-power information board
- A digital photo/art frame
- A workshop status screen
- A Wi-Fi connected notice board
- A portable IoT terminal
It is less suitable for:
- Touchscreen tablet replacement
- Fast menu systems
- Video or animation
- Real-time oscilloscope-style graphs
- Gaming
- Rapidly changing dashboards
The board is much more “smart paper” than “small tablet”.
M5Paper Color vs Older M5Paper Boards
The older M5Paper models were already popular because they combined ESP32 hardware with a large e-paper display. The new M5Paper Color changes the character of the product by moving to a full-colour Spectra 6 e-paper display and an ESP32-S3R8 platform.
The previous 4.7-inch M5Paper-style boards were higher resolution monochrome e-paper devices, while this new board is smaller at 4 inches but adds colour. So the choice is not automatically “newer is better”.
Choose M5Paper Color if you want colour icons, colour status states, photo-style visuals or signage.
Choose a monochrome e-paper board if you want faster refresh, sharper black-and-white text, or a more traditional e-reader-style display.
Verdict
The M5Paper Color ESP32S3 Dev Kit is one of the more interesting ESP32-S3 boards because it is not just another small LCD development kit. The colour e-paper display gives it a clear purpose: low-power information screens that stay readable and attractive without needing a constantly active backlight.
It is not the right board for every ESP32 project. The display refresh speed will limit what you can build. But for dashboards, Home Assistant panels, environmental displays, signage and smart information cards, it makes a lot of sense.
At $75, considering that it includes the ESP32-S3R8, colour e-paper display, battery, enclosure-like form factor, RTC, sensor, audio, microSD and power management, it looks like a strong ready-made platform for serious ESP32 display projects.
