ESP32 Eddystone URL Beacon (Deep Sleep Broadcasting)

Snippet summary:

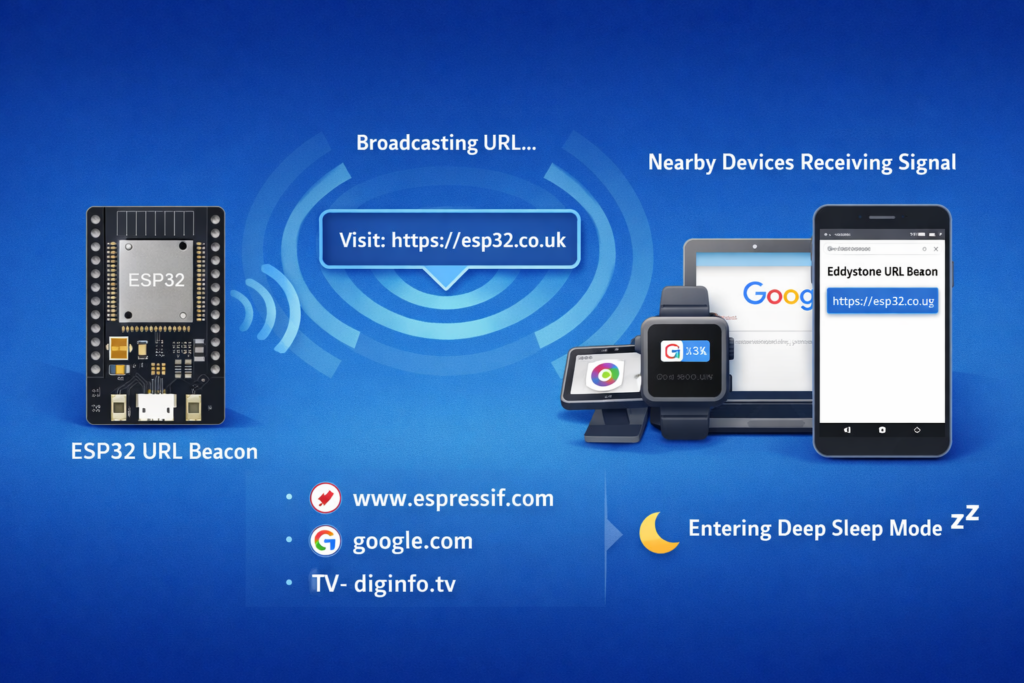

This example shows how to turn an ESP32 into a BLE beacon that broadcasts Eddystone URL frames. It periodically advertises a compressed URL, rotates between multiple URLs across wake cycles, and uses deep sleep to achieve ultra-low power operation.

Introduction

This example demonstrates BLE beacon broadcasting, not client/server communication
The ESP32 advertises a URL over BLE using the Eddystone protocol
No connections are required — devices simply scan and read the broadcast
Designed for low-power IoT and proximity-based applications

👉 Think of it as a wireless URL broadcaster

What is Eddystone URL

A BLE beacon format defined by Google
Broadcasts compressed URLs inside BLE advertisements
Designed for:

👉 Instead of pairing, devices just scan and decode the URL

What this example does

Cycles through a list of predefined URLs
Encodes each into Eddystone format
Broadcasts it for 10 seconds
Enters deep sleep
Wakes up and broadcasts the next URL

👉 Each wake cycle = different URL

URL list and rotation

String URL[] = { ... }

Contains multiple URLs
Examples include:

Selection logic:

URL[bootcount % (sizeof(URL) / sizeof(URL[0]))]

Uses boot count to rotate URLs
Every wake cycle → next URL

👉 Simple but effective state machine

Smart URL encoding

EddystoneURL.setSmartURL(...)

Automatically compresses URLs
Uses predefined prefixes:
Uses suffix compression where possible

👉 This reduces BLE payload size

URL limitations

Max length ≈ 17 bytes after encoding
Invalid cases:

// setSmartURL() returns 0 = error

👉 Always validate URLs before use

Advertising structure

oAdvertisementData.addData(data);
oScanResponseData.setName("ESP32 URLBeacon");

Advertisement → contains encoded URL
Scan response → contains device name

👉 Standard BLE split:

data → primary packet
name → scan response

BLE setup

BLEDevice::init("URLBeacon");
BLEDevice::setPower(BEACON_POWER);

Initializes BLE stack
Sets transmit power

#define BEACON_POWER ESP_PWR_LVL_N12

👉 Low power mode for energy efficiency

No BLE server required

// BLEServer *pServer = BLEDevice::createServer(); // not needed

This is important
Beacon mode does NOT require a server

👉 Saves:

RAM
flash
power

Advertising cycle

pAdvertising->start();
delay(10000);
pAdvertising->stop();

Advertises for 10 seconds
Then stops

👉 Short bursts → better battery life

Deep sleep operation

esp_deep_sleep(1000000LL * GPIO_DEEP_SLEEP_DURATION);

ESP32 shuts down almost completely
Only RTC memory remains

#define GPIO_DEEP_SLEEP_DURATION 10

👉 Sleeps for 10 seconds between broadcasts

RTC memory usage

RTC_DATA_ATTR static time_t last;
RTC_DATA_ATTR static uint32_t bootcount;

Values persist across deep sleep
Used for:

👉 Essential for low-power state tracking

Boot diagnostics

Serial.printf("Start ESP32 %lu\n", bootcount++);

Shows how many wake cycles occurred

Serial.printf("Deep sleep (%llds since last reset...)\n");

Helps debug timing behavior

Runtime flow

ESP32 wakes up
Selects next URL
Encodes URL
Starts BLE advertising
Broadcasts for 10 seconds
Stops advertising
Goes to deep sleep
Repeats

👉 Fully autonomous beacon

How to scan the beacon

Use:

ESP32 BLE scanner example
nRF Connect (Android/iOS)
any BLE scanner with Eddystone support

Look for:

Service UUID: 0xFEAA
Frame type: URL

Real-world applications

proximity-based web links
asset tracking tags
smart posters / exhibits
retail promotions
IoT device discovery

👉 “tapless” interaction via BLE scanning

Limitations

no connection support
no data feedback
limited payload size
depends on scanner support

👉 Pure broadcast model

Improvements for production

use dynamic URLs (e.g. sensor data endpoints)
adjust sleep duration for battery optimization
increase TX power for longer range
add real sensor integration
implement configuration via OTA or BLE setup mode

Honest take

This example is:

simple but powerful
extremely efficient
underused in real projects

Big takeaway:

👉 BLE can replace QR codes in many cases

But:

requires user to have BLE scanner
not as universally accessible as NFC/QR

Conclusion

This example shows how to build a:

👉 low-power BLE URL broadcaster

Using:

Eddystone URL format
compressed advertising payload
deep sleep cycles

It’s ideal for:

battery-powered IoT
proximity-based interactions
lightweight wireless communication


/*
   EddystoneURL beacon by BeeGee
   EddystoneURL frame specification https://github.com/google/eddystone/blob/master/eddystone-url/README.md

   Upgraded on: Feb 20, 2023
       By: Tomas Pilny
*/

/*
   Create a BLE server that will send periodic Eddystone URL frames.
   The design of creating the BLE server is:
   1. Create a BLE Server
   2. Create advertising data
   3. Start advertising.
   4. wait
   5. Stop advertising.
   6. deep sleep

*/
#include "sys/time.h"

#include <Arduino.h>

#include "BLEDevice.h"
#include "BLEUtils.h"
#include "BLEBeacon.h"
#include "BLEAdvertising.h"
#include "BLEEddystoneURL.h"
#include "esp_sleep.h"

char unprintable[] = {0x01, 0xFF, 0xDE, 0xAD};
String URL[] = {
  "http://www.espressif.com/",  // prefix 0x00, suffix 0x00
  "https://www.texas.gov",      // prefix 0x01, suffix 0x0D
  "http://en.mapy.cz",          // prefix 0x02, no valid suffix
  "https://arduino.cc",         // prefix 0x03, no valid suffix
  "google.com",                 // URL without specified prefix - the function will assume default prefix "http://www." = 0x00
  "diginfo.tv",                 // URL without specified prefix - the function will assume default prefix "http://www." = 0x00
  //  "http://www.URLsAbove17BytesAreNotAllowed.com", // Too long URL - setSmartURL() will return 0 = ERR
  //  "",  // Empty string - setSmartURL() will return 0 = ERR
  //  String(unprintable), // Unprintable characters / corrupted String - setSmartURL() will return 0 = ERR
};

#define GPIO_DEEP_SLEEP_DURATION 10  // sleep x seconds and then wake up
#define BEACON_POWER             ESP_PWR_LVL_N12
RTC_DATA_ATTR static time_t last;         // remember last boot in RTC Memory
RTC_DATA_ATTR static uint32_t bootcount;  // remember number of boots in RTC Memory

// See the following for generating UUIDs:
// https://www.uuidgenerator.net/
BLEAdvertising *pAdvertising;
struct timeval now;

int setBeacon() {
  BLEAdvertisementData oAdvertisementData = BLEAdvertisementData();
  BLEAdvertisementData oScanResponseData = BLEAdvertisementData();

  BLEEddystoneURL EddystoneURL;
  EddystoneURL.setPower(BEACON_POWER);  // This is only information about the power. The actual power is set by `BLEDevice::setPower(BEACON_POWER)`
  if (EddystoneURL.setSmartURL(URL[bootcount % (sizeof(URL) / sizeof(URL[0]))])) {
    String frame = EddystoneURL.getFrame();
    String data(EddystoneURL.getFrame().c_str(), frame.length());
    oAdvertisementData.addData(data);
    oScanResponseData.setName("ESP32 URLBeacon");
    pAdvertising->setAdvertisementData(oAdvertisementData);
    pAdvertising->setScanResponseData(oScanResponseData);
    Serial.printf("Advertise URL \"%s\"\n", URL[bootcount % (sizeof(URL) / sizeof(URL[0]))].c_str());
    return 1;  // OK
  } else {
    Serial.println("Smart URL set ERR");
    return 0;  // ERR
  }
}

void setup() {
  Serial.begin(115200);
  gettimeofday(&now, NULL);

  Serial.printf("Start ESP32 %lu\n", bootcount++);
  Serial.printf("Deep sleep (%llds since last reset, %llds since last boot)\n", now.tv_sec, now.tv_sec - last);

  last = now.tv_sec;

  // Create the BLE Device
  BLEDevice::init("URLBeacon");
  BLEDevice::setPower(BEACON_POWER);

  // Create the BLE Server
  // BLEServer *pServer = BLEDevice::createServer(); // <-- no longer required to instantiate BLEServer, less flash and ram usage

  pAdvertising = BLEDevice::getAdvertising();

  if (setBeacon()) {
    // Start advertising
    pAdvertising->start();
    Serial.println("Advertising started...");
    delay(10000);
    pAdvertising->stop();
  }
  Serial.println("Enter deep sleep");
  bootcount++;
  esp_deep_sleep(1000000LL * GPIO_DEEP_SLEEP_DURATION);
}

void loop() {}
